LED Display System for BUS / Automotive

Integrated Intelligent Transport System for Smart Cities

System Overview

The KPL ITS System is an integrated solution designed for Smart City Bus Systems. Our On-bus PIS System is Audio and GPS enabled, capable of sending real-time information to the backend server.

  • Real-Time Data: The backend server holds master data of all Buses and Bus Stops, processing real-time vehicle locations.
  • ETA Updates: The server calculates and sends Estimated Time of Arrival (ETA) to Bus Stop Displays.
Reliable After Sales Service

Kristronics provides nationwide support through a dedicated service network. We ensure timely servicing by maintaining an effective ratio of spare parts and engineers to installed systems.

System Diagram

Figure: Smart City Bus PIS Architecture

Kristronics LED Displays

Kristronics LED Displays are used for the display of route number and destination texts. The Displays are designed from a user friendly perspective. Text and graphics are created by using the Mobitec editing software, and routes & data on the displays are controlled by Driver control Unit. These LED displays, together with our complete product range, provides the complete information systems designed for the demanding vehicle environment.

Zero Maintenance

  • The Displays are fully electronic with no moving parts.

  • IP- 65/66 design.

  • LED’s which will function for the normal lifetime of the bus.

  • The LED’s have built in UV protection which means they will keep their colour and intensity.

Optimal Legibility

  • High Bright Day Night viewable amber LED’s with a wide viewing angle.

  • Automatic Brightness control.

  • High resolution allows for more and longer text lines, and better fonts.

  • Multilingual Support

  • Text designs can be adjusted to give optimal legibility.

Easy Installation

  •  The Displays uses MS/aluminium to create a light weight, but solid construction.

  •  Installation is easier because of a thin depth dimensions.

  •  Displays are supplied with built in fixing points and cables fitted with connectors for a flexible and easy installation.

Compliance to Specification

  • JnNURM- I & II

  • IS 16490

  • ARAI Specs

  • Bus Body code

  • And other Automotive Standards

JnNURM-I & II IS 16490 ARAI Specs Bus Body Code

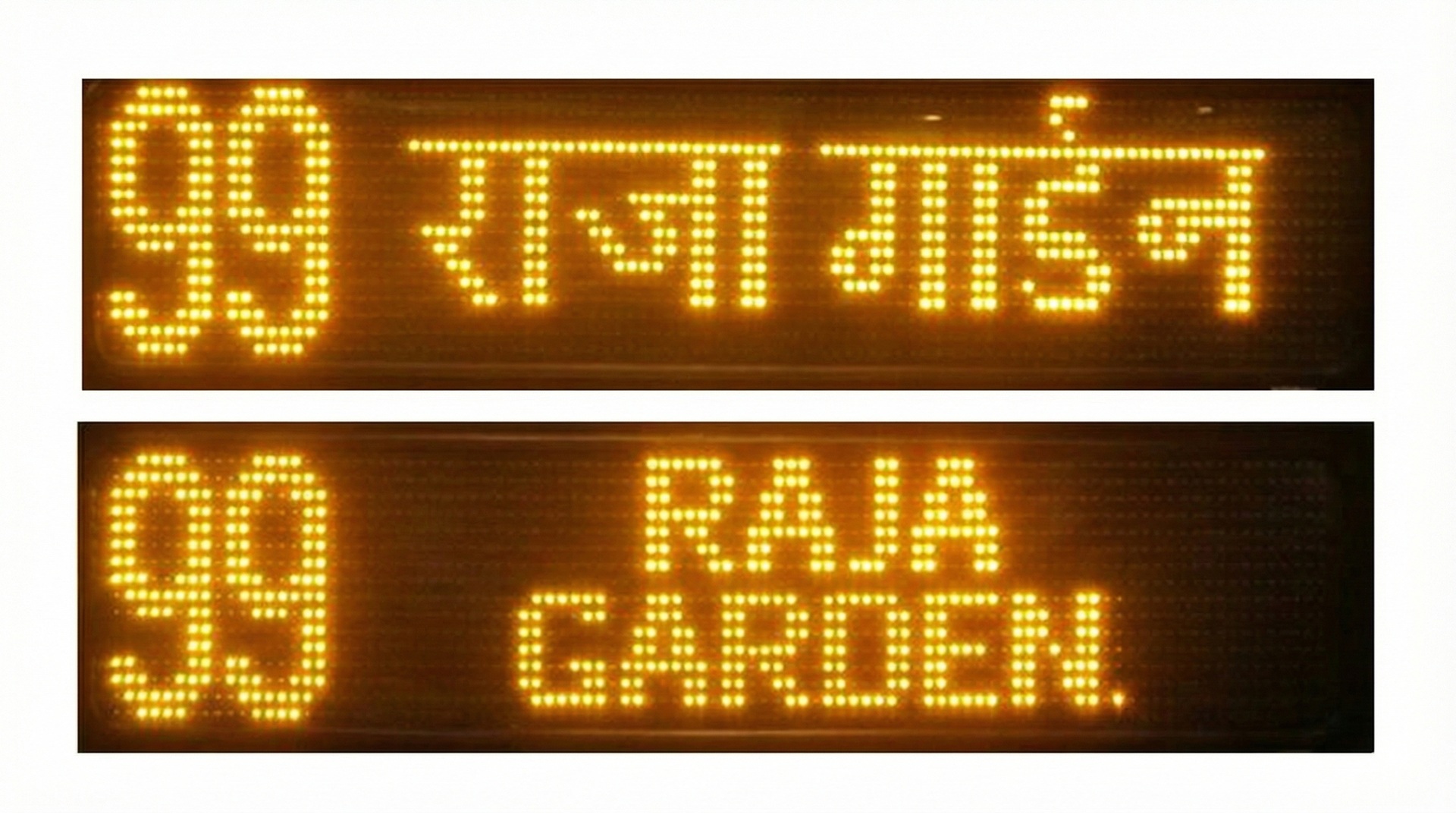

LED Display Board

Driver Control Unit (DCU)

Route information, Displaying & Announcement of Real time Current and Next Approaching Bus Stop, Sending Real time data to back end Server, GPS Location; all these are controlled by KPL Driver Control Unit (DCU). KPL DCU is a powerful control device which can be updated through USB and comes with a user friendly windows based software.

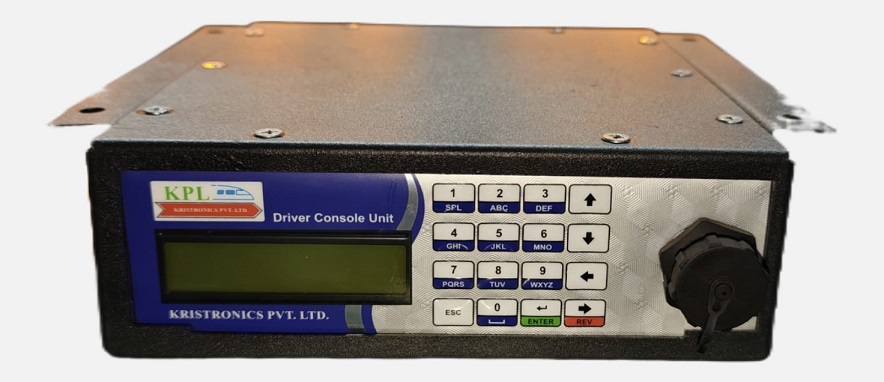

Driver Control Unit
Zero Maintenance

  • DCU are fully electronic with no moving parts.

  • IP- 65/66 design.

  • Press buttons are of high quality and sustainable for long life.

  • Vibration proof and solid construction.

Conventent To Use

  • Menu based operation

  • 4X4 Keypad Bright LCD for easy operation

  • TAC type buttons that give sound and feel of pressing for ease of use

  • Password protection to avoid unauthorized access

  • DATA updation through USB.

Easy Installation

  • The DCU is light weight & sleek, but solid construction

  • Installation is easier because mounting is on the side and easily accessible.

  • DCU are supplied with built in fixing points and cables fitted with connectors for a flexible and easy installation.

Compliance to Specification

  • JnNURM- I & II

  • IS 16490

  • ARAI Specs

  • Bus Body code

  • And other Automotive Standards

Single Controller Unit (SCU)

The Single Controller Unit (SCU) acts as the central hub for the vehicle's Intelligent Transport System (ITS), coordinating with the Bus Driver Console (BDC). The SCU and BDC manage subsystems including Vehicle Location Tracking, Passenger Information, Two-way Communication, Surveillance, Rear Parking Assistance, Vehicle Health Monitoring, SOS Switch, Event Recordings, Route Announcements, and Backend Server Communication.

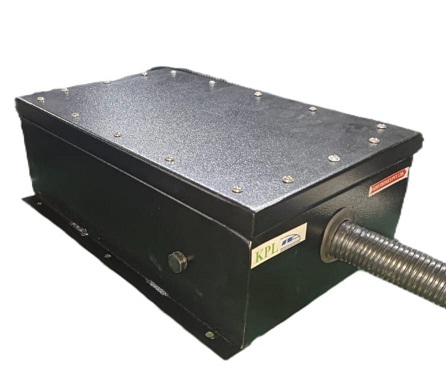

SCU Unit
Operating system Embedded Linux / Windows Camera power supply (POE) IEEE 802.3af POE
Operating Voltage 16VDC to 39VDC External Interfaces 4 Digital Inputs, 2 Digital Outputs, RS232, RJ45 and USB2.0, RS485, CAN2.0
Max Current Consumption Up to 5A LTE Module CAT4
RAM MEMORY 4GB Video Output H.264, H.265, MPEG-4 and M-JPEG
eMMC 16GB Audio Format G.711/G.726
SSD Expandable up to 1TB LED Indication Power – Green, Ignition – Yellow, Recording – Red, Network – Red
Operating Temperature -25°C to +85°C Accelerometer/ Gyroscope 3-axis digital accelerometer and 3-axis digital gyroscope
Electrical Protection Over voltage, Under voltage, Reverse polarity protection, Automotive transients, ESD, EMI/EMC Built in RTC For real time – Stamping of date and Time, drift not more than 10 s
Antenna RG174 Combi Antenna for LTE, WI-FI, GPS/GNSS/NAVIC CAN Port stores diagnostics trouble codes for Vehicle Health Monitoring
WI-FI IEEE 802.11ac – 10m Range

Bus Driver Console (BDC)

  • The bus driver console is designed for user-friendliness with an interactive display and robust, elegant design, providing drivers with accurate and reliable information.

  • It facilitates easy access to surveillance and rear cameras, updates route information promptly, and operates with minimal latency for enhanced efficiency.

  • Inbuilt noise-free speaker system designed for effective communication with the control room.

  • Complies with UBS II and IS16833 standards, ensuring adherence to quality and safety benchmarks.

Operating Voltage Through SCU
Panel size 7/8-inch TFT LCD
Number of Pixels (Resolution) 800*480
Number of Colours 16.7M
Display Mode IPS / Normally Black
Viewing Angle 150
Display Format RGB
Video Input Interface Two Video Input Interface
Luminance (cd/m^2) 400cd/m2
Backlight White LED - Adjustable brightness
Operating temperature -25°C to + 70°C
Speakers Inbuilt, power max: 1.5W
Accessibility Keys for Navigation and Control

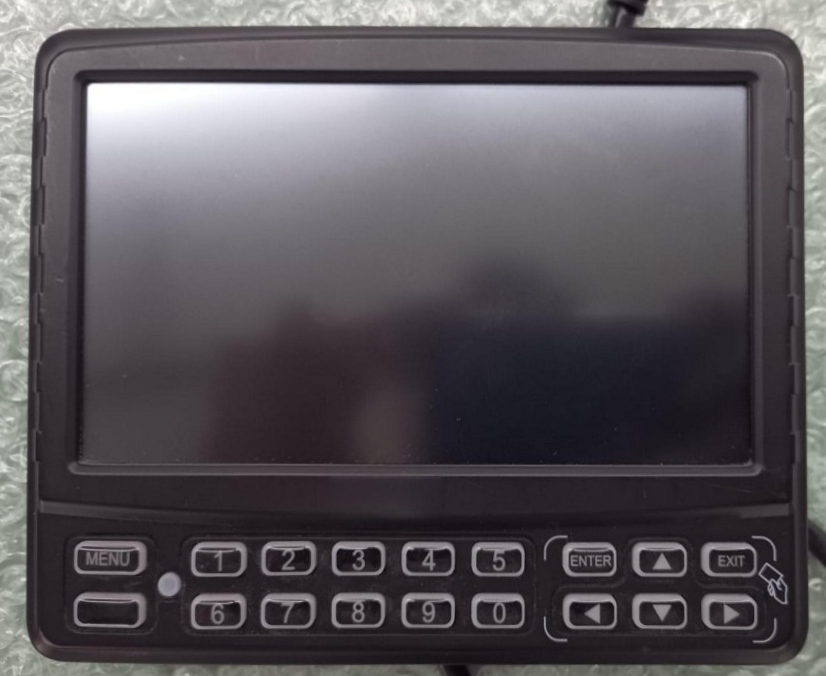

Bus Driver Console

Surveillance & Safety Solutions

IP Camera

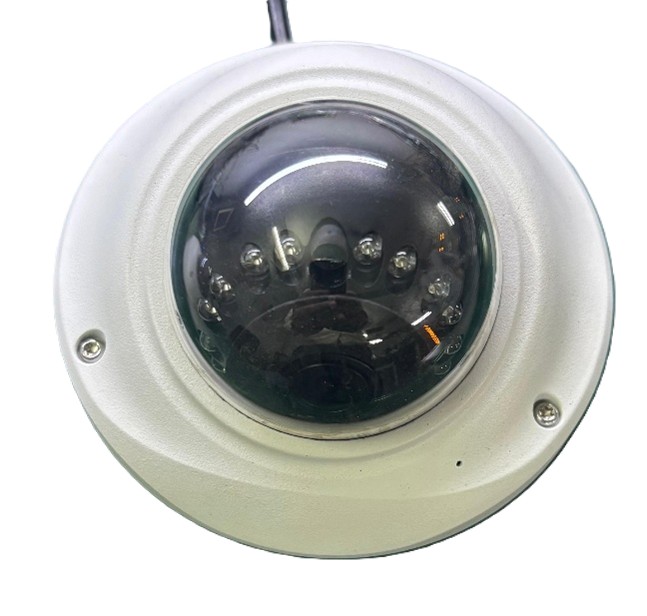

IP Surveillance Camera
  • Operating Voltage: 12VDC
  • Image Sensor: 1/3 CMOS Sensor
  • Night Vision: Yes (IR) Monochrome
  • Megapixels: 2 MP
  • Resolution :1920 (H) x 1080 (V) pixels
  • Frame Rate :Max : 30 fps
  • Electronic Shutter :1/25（1/30）～ 1/1,00,000 Seconds
  • Operating Temperature :-25C to +70C
  • Storage Temperature :-30C to +80C
  • Video Output :H.264, H.265, MPEG-4 and M-JPEG
  • Audio Format :G.771A/G.771U/ADPCM/LPCM/G.711/G.726
  • Illumination :0.01 Lux (day) at F1.2, 0 Lux (with IR)
  • Power Supply (POE) :IEEE 802.3af POE
  • Night vision distance :10-30M
  • Microphone :Yes
  • Protocol :HTTP/ONVIF/RTSP
  • Lens :
  • Lens Angle :120°
  • Protection :Rugged, Anti-Vibration, Shock and tamper proofing
  • Image enhancement :Auto-tracking white balance (ATW), Automatic gain control, Wide dynamic range (WDR) and Automatic backlight compensation (BLC)
Reverse Camera

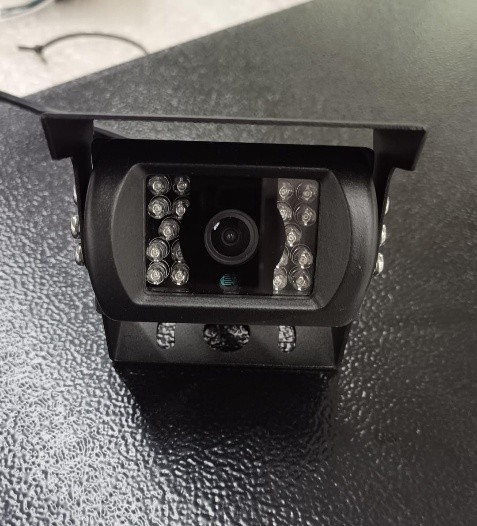

Reverse Parking Camera

AHD Rear Camera are newly designed products based on AHD 720P technology, used for high- end vehicle CCTV system. The Main application is for reverse parking and activates once you apply the reverse gear to it

  • Operating Voltage:12VDC
  • Image Sensor: 2MP AHD
  • Night Vision: Yes (IR)
  • Resolution: 720
  • Frame Rate :Max : 25 fps
  • Electronic Shutter :1/25（1/30）～ 1/1,00,000 Seconds
  • Operating Temperature :-30C to +80C
  • Storage Temperature :-30C to +80C
  • Video Output :H.264, H.265, MPEG-4 and M-JPEG
  • Illumination: 0.001 Lux (day), 0 Lux (with IR)
  • Night vision distance:10-20M
  • Lens:3.6mm
Reverse Monitor

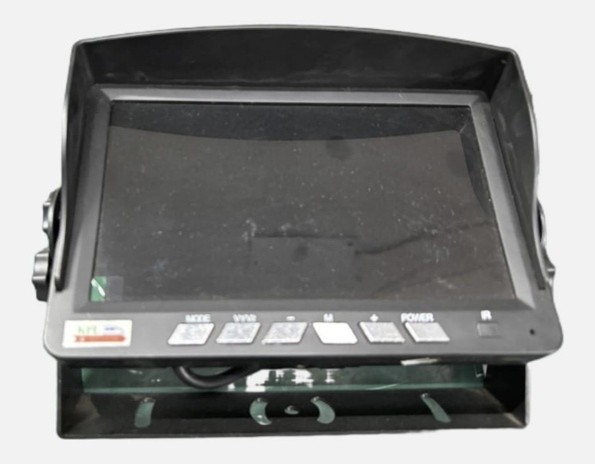

Reverse Parking Display

• The RPD is designed for Displaying the Rear View while Reversing the Bus.It facilitates easy access to surveillance and rear cameras and operates with minimal latency for enhanced efficiency.Inbuilt noise-free speaker system designed for effective communication with the control room. Inbuilt noise-free speaker system designed for effective communication with the control room.

  • Operating Voltage:Through SCU
  • Panel size: 7-inch TFT LCD
  • Number of Pixels (Resolution):800*480
  • Number of Colours: 16.7M
  • Display Mode :IPS / Normally Black
  • Viewing Angle :150
  • Display Format :RGB
  • Luminance :(cd/m^2) 300cd/m2
  • Backlight :White LED - Adjustable brightness
  • Operating temperature:-25°C to + 70°C
  • Accessibility :Keys for Navigation and Control
