Railway Station PIS

Integrated Passenger Information Systems for Modern Railways

System Architecture

Centralized Control & Redundancy

Our Railway Station PIS is powered by a robust Control Console Unit featuring dual-PC redundancy (PC 1 & PC 2) to ensure zero downtime and continuous operation.

The system integrates the Remote Server with the Main Data Communication Hub, distributing real-time schedule data to Platform Data Hubs across the station.

  • Main Data & IO Hub

    Centralized distribution point for all train data, ensuring synchronization across all displays.

  • Redundant Architecture

    Automatic failover between PC 1 and PC 2 ensures mission-critical reliability.

Railway PIS Diagram

Figure: Control Console Unit & Display Network

Comprehensive Display Solutions

We offer a complete suite of LED display boards designed to provide clear, "At-A-Glance" information to passengers on platforms, waiting halls, and concourses.

Multiline Display Board

Simultaneously displays multiple trains with Train No, Name, Expected Time, and Platform No.

At-A-Glance Display Board

High-visibility summary boards for main entry points and concourses.

Coach Guidance Display Board (CGDB)

Indicates exact coach positions (A1, A2, B1...) on the platform for passenger convenience.

Single Line Display Board

Dedicated displays for individual platforms showing next train details.

Coach Guidance

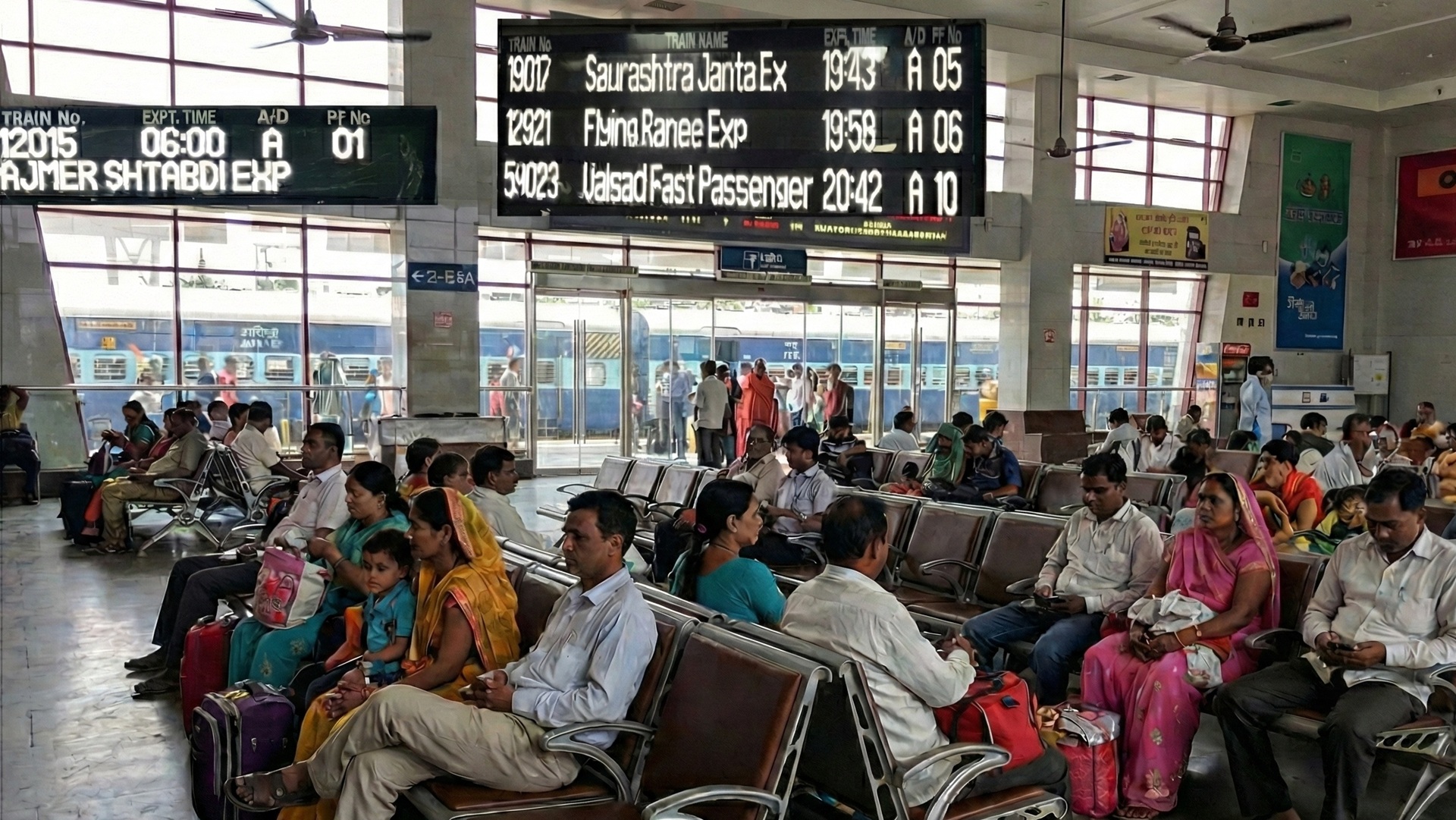

Waiting Hall Display

Trusted & Certified Technology

ISO CERTIFIED 9001:2015
#startupindia DPIIT Recognized
